Finding the Centre Position of a Polygon Face: Maya Python API

-
In the past few days I found myself having to find the position of face centres of a polygon.

Looking through the Maya documentations I find no MEL or Python commands that can do this. So I had to do a Google search the answer.

The most useful solution I found was from a discussion in Google Groups, in a reply by Justin Israel (who works in Weta Digital according to his Google+ profile):
https://groups.google.com/d/msg/python_inside_maya/UoMVxr0deVo/OJ2K8IpevxQJ

Here is an excerpt of Justin's answer:
import pymel.core as pm
import maya.OpenMaya as OpenMaya

face = pm.MeshFace("pCube1.f[64]")
pt = face.__apimfn__().center(OpenMaya.MSpace.kWorld)
centerPoint = pm.datatypes.Point(pt)

Here is another interesting article discussing how we can go about finding the centre position of a face: http://mayastation.typepad.com/maya-station/2009/11/where-is-the-center-of-a-polygon.html

Comments

Post a Comment

Popular posts from this blog

Maya UI Layout Example

-
In reply to another StackOverflow question , I wrote 2 blocks of code that shows 2 UI layouts created with Maya's UI framework. First one looks like this: This is the code that created this first one. import maya . cmds as mc def buildUI (): winName = 'myWindow' winWidth = 200 # set a target width and reference this when you specify width if mc . window ( winName , exists = True ): mc . deleteUI ( winName ) mc . window ( winName , width = winWidth , title = 'Test Window' ) # i always have keep a reference to the main columnLayout mainCL = mc . columnLayout () mc . text ( label = 'text row 1' ) # tmpRowWidth controls the width of my columns in the rowLayout # with reference to winWidth tmpRowWidth = [ winWidth * 0.3 , winWidth * 0.7 ] mc . rowLayout ( numberOfColumns = 2 , columnWidth2 = tmpRowWidth ) # at this point our UI pointer is under the rowLayout mc . text ( label = 'row colu
Read more

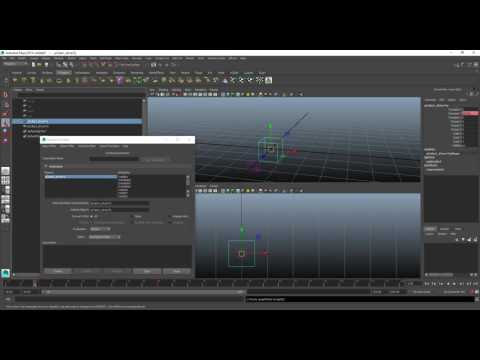

Maya Expressions Part 02 - Conditional Statements

-
